2024 Custom Legacy Marine New Zealand L35

Brochure L35

35 Foot Sedan Cruiser



Welcome to a new era of Aluminium Sport Fishing Motor Yachts.

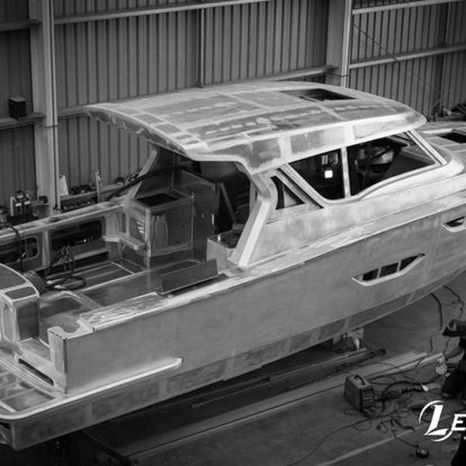

Legacy Marine has been established by New Zealand’s most awarded Aluminium Boat Manufacturer - Extreme Boats, which has been leading the Aluminium Boat building industry for over 20 years.

Crafted by skilled tradespeople with meticulous attention
to detail, each Legacy Sport Fishing Motor Yacht is designed to not only leave a wake in its path - but a Legacy!

It is time to live a life where experiences can not only be dreamed of but explored and cherished.

It is time to experience the exceptional!

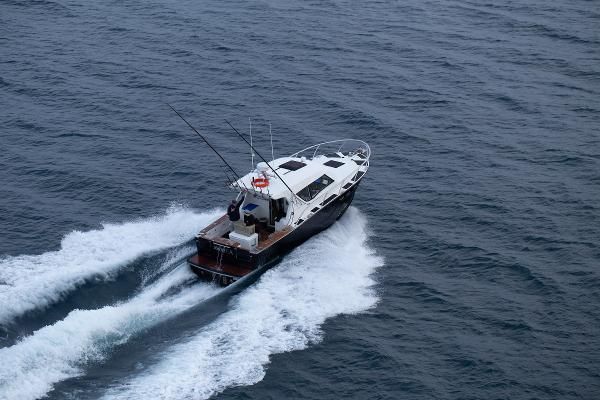

L35

The L35 will transport you to the destinations you desire in ease, comfort and style. Designed for those wishing to explore offshore islands and coastline in a relaxed manner the L35 will leave the stresses of life in its wake!



L35

SPECIFICATIONS



Length overall Length over waterline Beam Fuel capacity Water capacity Sleeping cabins Sleeping capacity Engines Max speed

10.58 meters 9.32 meters 3.31 meters 700 litres 150 litres

2
6

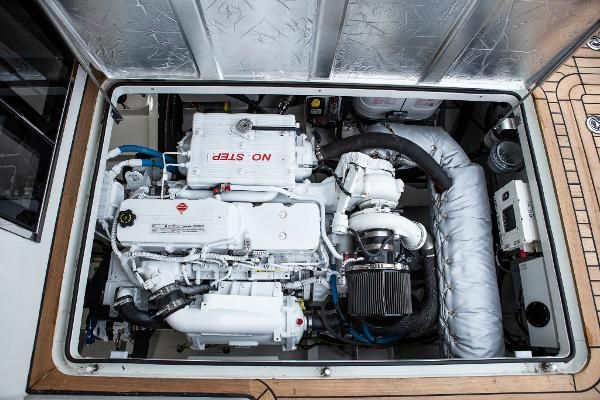

1 x Cummins QSB 6.7 480hp @ 3300rpm 30 knots



L435

STANDARD INCLUSIONS

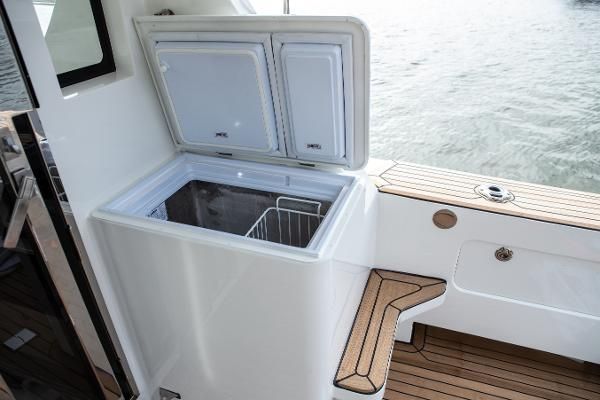

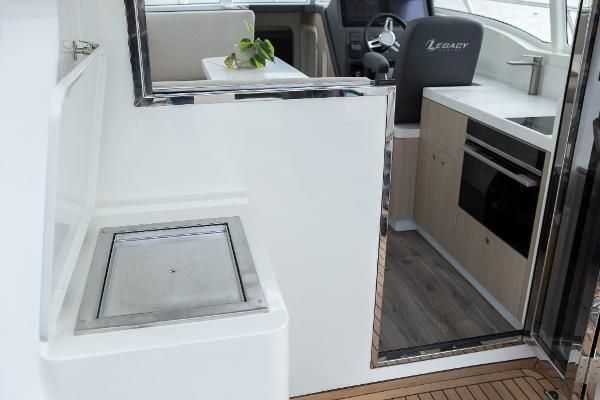

COCKPIT

- Teak ooring throughout -

• -  Large underoor free draining or pumped -

  out storage bins x 3 all with secure stainless
  steel hold down latches and painted inner lining - with drainage channel -

• -  Access to engine room through lockable hatch
  with drop in underoor storage bin -

• -  Gas struts on all underoor covers and engine room -

• -  Stainless steel grab rails to assist throughout

• -  Under gunnel LED courtesy lights -

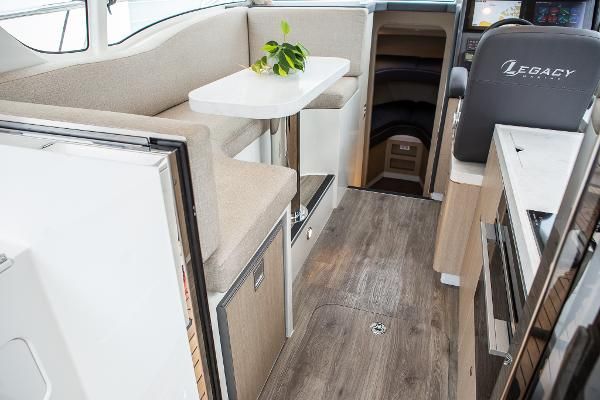

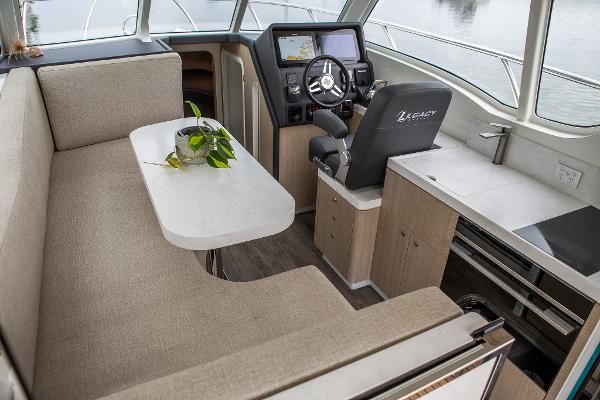

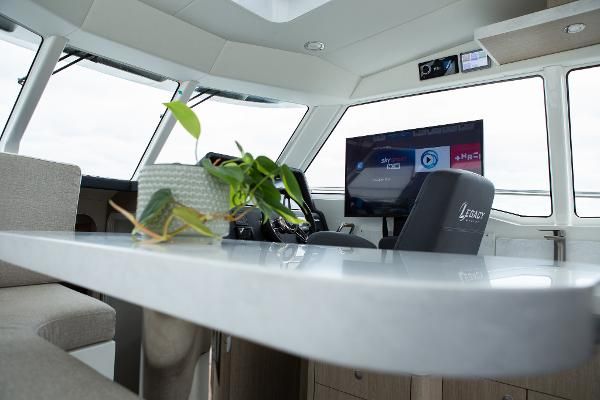

  SALOON

  • -  Captain helm station fwd and to starboard - including all engine management information, - ship monitoring and electronic package

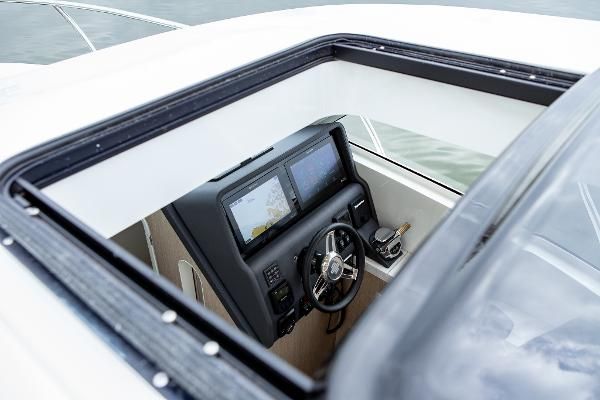

  • -  Large electric opening sunroof to centre

  • -  Large aft galley to starboard with ample under -

    bench storage and Himac’s benchtop

  • -  Under bench fridge -

  • -  Microwave -

  • -  Cook top in bench surface -

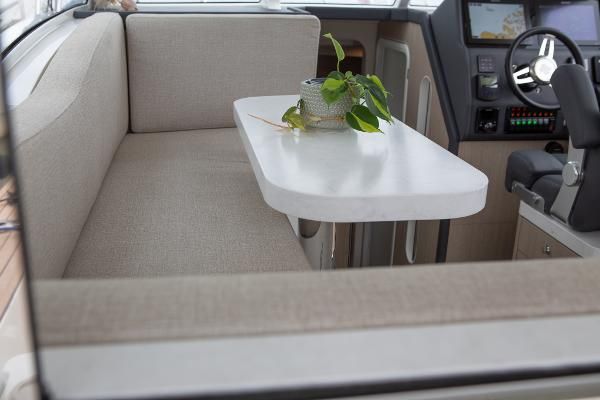

  • -  L shaped bench settee aft to port with dining -

    table, raise and lower dining table lowers to become -

    coffee table with storage below -

  • -  Ample stainless steel handrails throughout

Transom entry door to port
Side storage cupboards to port and starboard
Livebait tank aft and to centre
Hawse hole aft to port and starboard for mooring lines
Cleats throughout
Work bench fwd and to starboard with incorporated
Work bench fwd and to starboard
with incorporated sink and cover

Head lining, leather like with backing Entry door aft and to centre, high quality polished stainless frame with tinted glass inll
Exterior LED lighting under roof overhang to cockpit
AC and DC power points throughout Flush mounted speakers throughout Storage overhead bench
Cook top in bench surface
Overhead LED lighting
Fixed pain window to starboard highly polished stainless frame with tinted glass



• -  Large vertical sliding window to port, highly polished stainless frame with tinted glass inll

• -  10,000 BTU built in marine Air Conditioning if selected



L35

STANDARD INCLUSIONS

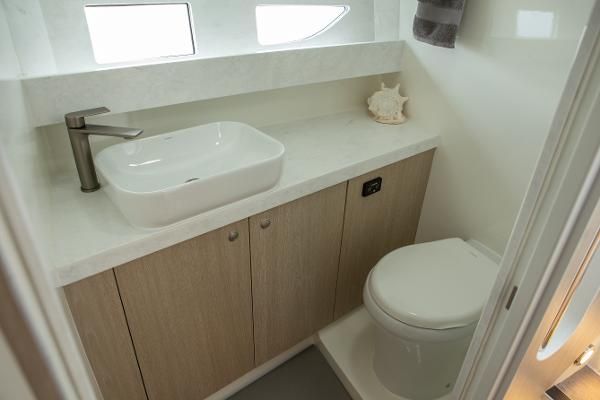

BATHROOM AND HEAD

- Situated to starboard adjacent to owners and guest accommodation

- Private entry door
- Vacuush head to aft

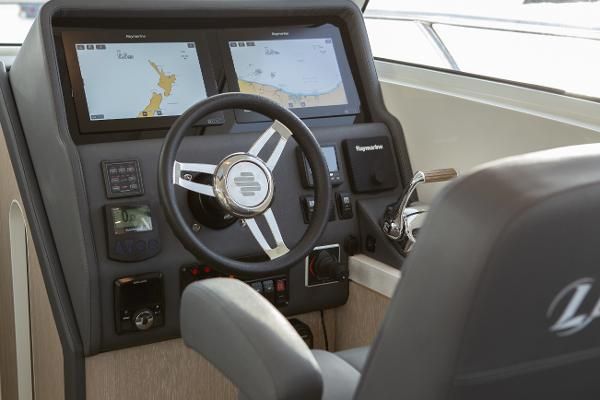

HELM

- High quality captains seat
- Ergonomic dash layout with most used controls in arms reach
- Well laid out dash including all nav and communication equipment - Anchor winch controls including chain counter
- Camera display for engine room and cockpit if selected
- Engine management guages
- Power assisted steering
- Glove box
- Cup holders x 2

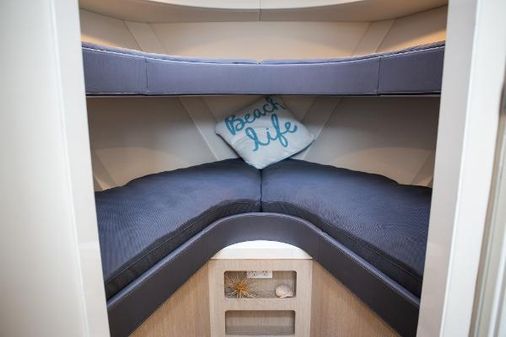

GUEST ACCOMMODATION

- Forward to port and starboard vee style single berth x 2 - Private entry door
- Hanging locker to port
- Large under berth storage

- Vanity and mirror to starboard - Shower cubicle fwd
- Cupboard storage under vanity - Quality tapware

- Overhead LED lighting
- AC and DC power points throughout

OWNERS ACCOMMODATION

- Situated aft to centre
- Double berth to starboard - Single berth to port
- Hanging locker
- Private entry door
- Large under berth storage - Overhead LED lighting
- AC and DC power

- V.H.F
- G.P.S
- Auto pilot
- Radar
- Fish nder
- Audio controls
- Tank level monitoring - Compass



points

L32



CEPT ARRANGMENTS

L325 CSOTNACNEDPATRADRIRNACNLUGSMIOENTSS



10584



MASE GENERATOR 2KW



750



50mm CAMBER



DATUM WATERLINE



STERN THRUSTER;
VETUS 42kgF 125mm TUNNEL ID

PORTSIDE PROFILE



L32 220



1 x CUMMINS QSB 6.7 480HP @ 3300rpm ZF 286 A @ 2.5:1 RATIO (LIGHT DUTY) ZF 85A @ 2.5:1 RATIO (PLEASURE DUTY)

660mm DIAMATER PROPELLER

GYRO; SEAKEEPER 2

WATER ~150 LTR

BLACK WATER TANK 80 LTR

HEAD COMPARTMENT SOLE

COLLISION BLKD

BOW THRUSTER;
VETUS 42kgF 125mm TUNNEL ID



RUDDER BOTTOM EDGE 75mm ABOVE PROPELLER UNDERSIDE

9321

10193mm MNZ 40A LOA MEASUREMENT

1056

205

1866

2000

1974

L32

EPT ARRANGMENTS CONCEPT ARRANGMENTS

L35

PASSIVE LIVE BAIT TANKS PORT AND STBD

STEP OVER

STEP OVER

LIVEBAIT TANK WITH TUNA TUBES

COCKPIT HATCHES

DROP DOWN WINDOW (PILLARLESS)

ENGINE ROOM AIR; IN = PORT
OUT = STBD

85 LITRE FRIDGE UNDER SETTEE

DINETTE

ENGINE ROOM MAIN HATCH

COCKPIT WORK STATION; - TACKLE DRAWERS
- BBQ HOTPLATE
- GAS BOTTLE

- SINK ETC

ENGINE ROOM HATCH

GALLEY: SINK COOKER MICROWAVE

HINGING HELM SEAT WITH BENCH UNDER. 10,000BTU AC UNIT

2 x 12" MFD SCREENS
+ MAIN SWITCH BOARD

CABIN SKYLIGHT / HATCH

2866

2452

3313

SALOON AND COCKPIT PLAN

DOWN

RC8 / RC 10 ANCHOR WINCH



L35

CONCEPT ARRANGMENTS

ZIPWAKE 450 OR SIMILAR INTERCEPTORS

MASE GENERATOR 2KW

GYRO: SEAKEEPER 2

OPENING PORTLIGHT PORT AND STBD

TRIPLE BERTH CABIN

HANGING LOCKER

BLACK WATER TANK 80 LTR



HINGE UP SECTION



FUEL ~350 LTR



FUEL ~350 LTR

ISOTHERM BASIC 40L HOT WATER CYLINDER



TRANSOM MOUNTED STERN THRUSTER

TWIN RUDDERS

1 x CUMMINS QSB 6.7 480HP @ 3300rpm ZF 286 A @ 2.5:1 RATIO (LIGHT DUTY)
ZF 85A @ 2.5:1 RATIO (PLEASURE DUTY)

VARIOUS EQUIPMENT
(WEIGHT ESTIMATE PLACE HOLDERS)

LOWER PLAN

WATER ~150 LTR

HEAD AND SHOWER COMPARTMENT (SOLE 130mm STEP UP) WITH NATURAL LIGHT AND AIR EXTRACTION

TRIPLE SINGLE BUNKS WITH STOWAGE

OPENING PORTLIGHT



WWW.LEGACYMARINE.CO.NZ E-MAIL: TODD@LEGACYMARINE.CO.NZ

746

HOUSE BATTERY

RAINMAN WATERMAKER 24DC INCL CASE

START BATTERY

1984

728

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

“All measurements are subject to change”
